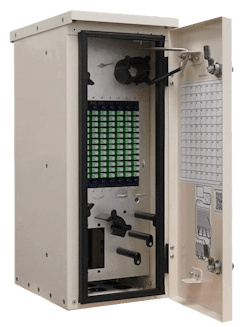

The FieldSmart 96-Port PON FDH Cabinet is the smallest PON cabinet in the Clearfield product offering, measuring 24.2” H x 13.5” W x 10.7” D. Designed strictly for a pole mounted deployment, this cabinet exterior was modeled after our existing FDH cabinet line, while the interior bulkhead was modeled after our pedestal mounted PON insert, offering up to 12 feeder/express ports and up to 96 distribution ports.
The 96-Port PON FDH Cabinet is available in the following options:
- Empty Cabinet
- Patch and Splice Cabinet
- Patch Only Cabinet
Adding Clearfeld’s Clearview® Blue Cassettes as needed allows the provider to align capital expenditures with their customer take-rates.
Integrity
- Terminations are designed, tested and certified to Telcordia GR-326
- Clearfield® FiberDeep® Guarantee: 0.2 dB insertion loss or less, exceeding industry standards
- Fiber cable certified to Telcordia GR-20 and GR-409. Designed, tested and certified to Telcordia GR-3125
- Cabinet constructed with 0.064 aluminum, powder coated for additional protection
- 300 series stainless steel fasteners used on all cabinets
Protection
- 12-fiber Clearview Cassette protects fiber from environmental and human factors
- WaveSmart® Ruggedized Splitters are built with ruggedized jacketing and bend-insensitive fiber for all input and output legs
- Pyramid roof and venting provide additional protection in all environments
Access
- Clearview Cassette allows for quick visual troubleshooting without opening cassette
- Front and rear access doors
- Bottom exit/entrance for fiber cables
- Pole Mount design allows for quick and secure installation and deployment
Investment
- Fiber is deployed in increments of 12, providing the users the ability to scale from 12 ports to full capacity, aligning capital investment with network layout or subscriber revenue
- Express ports allow for extensions or parallel networks through the cabinet
- Patch and splice configurations eliminate costs associated with additional hand-holes and splice cases
